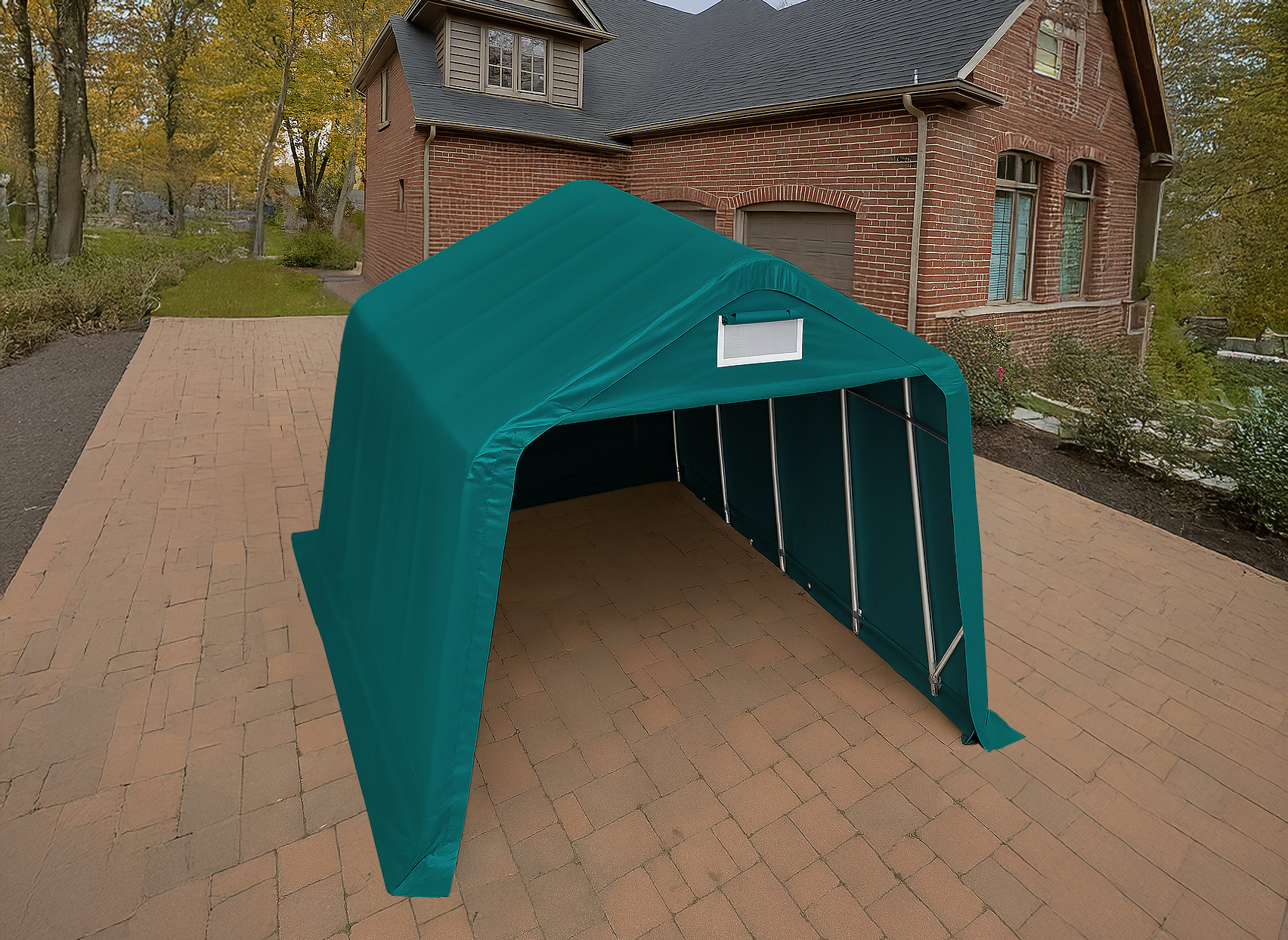

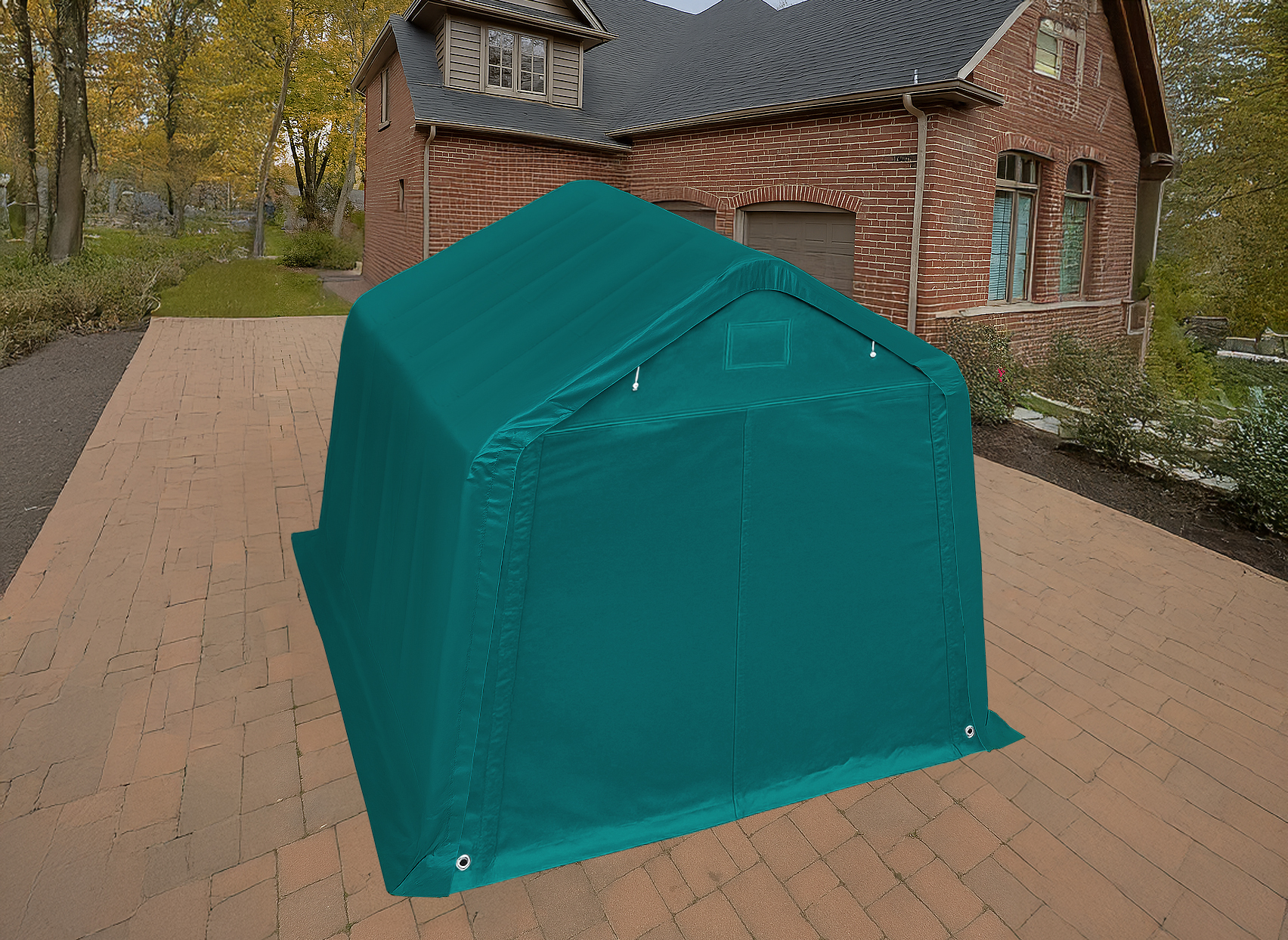

Carport / Portable Garage
800 PVC Tarpaulin Material | |
Year-round suitability | |
Frame: Robust Oval profiles made of Galvanised Steel | |
Suitable for firm or soft surfaces | |
100% waterproof with welded seam |
Features
Item no.: | UKT-3550CGN |
Size: | 3.5x5m |
Weight: | 116.64 kg |
Material: | PVC 800 |
Colour: | Green |
No. Of Boxes: | 5 |
Dimensions
Width | 3.5m |
---|---|
Length | 5m |
Total Area | 15.84m² |
Eaves Height | 2.1m |
WxH Gate | 2.8 x 2m |
Structure
Our clever design is the difference!
Thanks to the strong oval-profile poles the steel frame is exceptionally robust. It absorbs loads and effectively dissipates them.
The steel frame- Constructed from 100% fully galvanised steel
- Provides superior protection against corrosion and rust
- Features a load-bearing oval profile
- Diameter: approximately 45x32 mm
- Wall thickness: approximately 1.2 mm
Tarpaulin
- Tarpaulin material consists of modern high-performance polyester enhanced with an extra PVC coating.
- Seams undergo meticulous sealing through a machine-based tape-sealing process.
- Tearing strength measures 800 N, equivalent to 80 kg, meeting DIN EN ISO 13934-1 standards.
- Ensures 100% waterproof protection against rain.
- Reinforced contact points between the frame and tarpaulin feature anti-friction areas.
- UV 50+ guarantee provides outstanding sun protection.
- Includes a wide, practical, industry-grade hook-and-loop fastener for securing side parts to the roof.
- Eyelets positioned at the bottom edge of side parts enable additional tarpaulin securing using the supplied ground pegs.
- Smooth high-performance polyester with PVC coating facilitates easy cleaning.
Contents
- Steel frame
-
Tarpaulin set components:
- Single-piece roof & side tarpaulin
- 1 gable panel with entrance
- 1 gable panel without entrance
- Bungees
- Anchoring pegs
- Guy ropes
- Assembly instructions
- Assembly tool
- Structural analysis handbook
- Tensioning strap and ratchet
